The first heavier-than-air powered aircraft to achieve sustained, controlled flight. Orville and Wilbur Wright flew it at Kitty Hawk, North Carolina on 17 December 1903, proving three-axis control, a purpose-built lightweight engine and propellers the brothers designed themselves from first principles. Developed by Wright Cycle Company.
The first heavier-than-air powered aircraft to achieve sustained, controlled flight. Developed by Wright Cycle Company.

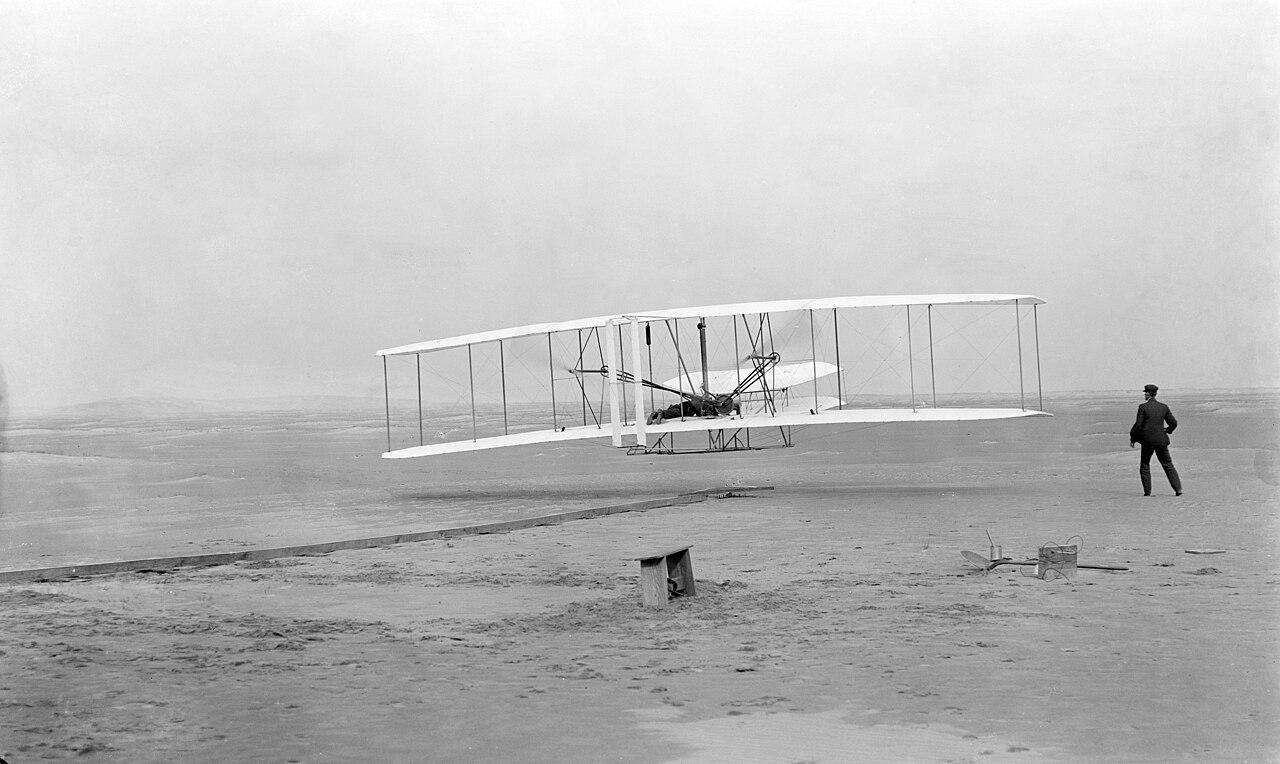

Photo: John T. Daniels, Public domainSee Specifications for full detail.
The Wright Flyer is the aircraft flown by Orville and Wilbur Wright at Kitty Hawk, North Carolina, on 17 December 1903 - the first sustained, controlled, powered flight by a heavier-than-air aircraft. The first flight covered 120 feet in 12 seconds.[1]
The Wright brothers developed the Flyer through several seasons of glider testing and their own wind-tunnel research, solving the problem of three-axis control that had defeated earlier attempts at powered flight. The original aircraft flew four times on 17 December 1903 before being damaged by a gust of wind, and is now displayed at the Smithsonian's National Air and Space Museum.[1][2]
Wilbur and Orville Wright came to flight through the door nobody else used. Where rivals sought inherent stability - machines that would fly themselves - the brothers, bicycle men to the core, believed a flying machine should be unstable and *controlled*, like a bike, by its rider. Watching buzzards twist their wingtips gave them wing-warping; a twisted inner-tube box gave them the mechanism.[3]
Three gliding seasons at Kitty Hawk (1900-1902) turned insight into engineering. When published aerodynamic data failed them, they built a six-foot wind tunnel and re-derived lift tables for two hundred wing shapes themselves; when they coupled warping with a movable rudder in the 1902 glider, they possessed - and patented - three-axis control, the actual invention inside the invention of the aeroplane.[1]
For the powered machine, no engine on the market was light enough - so their shop mechanic Charlie Taylor built one from scratch in six weeks: 12 horsepower, aluminium crankcase, no carburettor or spark plugs to speak of. The propellers were the deeper triumph: the brothers realised a propeller is a rotating wing, derived the theory themselves, and carved twin pusher props of roughly 80% efficiency - a figure modern analysis confirms with some awe.[1]
The Flyer itself: 40-foot biplane wings with warping built in, canard elevator out front (chosen after a friend's fatal stall for its supposed safety), twin rudders behind, chains from the bicycle trade driving the propellers, and no wheels - it launched from a 60-foot wooden rail the brothers called the 'Junction Railroad'.[2]
After Wilbur won the coin toss and over-rotated into the sand on the 14th, repairs took two days. On the 17th, into a 27 mph freezing headwind, it was Orville's turn: 120 feet in 12 seconds, photographed at the instant of liftoff by lifesaver John Daniels in one of history's most perfect photographs - the first true aeroplane flight, powered, controlled and sustained.[1]
They flew four times that morning, alternating turns, Wilbur's final effort covering 852 feet in 59 seconds. Minutes later a gust flipped the Flyer over and wrecked it; it never flew again. The brothers walked to Kitty Hawk village and telegraphed their father: success, four flights, inform press, home Christmas.[2]
The world mostly shrugged - or disbelieved. The brothers flew on quietly at Huffman Prairie outside Dayton, turning the marginal 1903 machine into the fully practical Flyer III of 1905, which banked, circled and stayed up for half an hour. Not until Wilbur's 1908 demonstrations at Le Mans - executing figure-eights before stunned French aviators who had barely managed straight hops - did the world concede what had happened five years earlier.[3]
Then came the bitter decade: patent wars with Glenn Curtiss that consumed Wilbur (dead of typhoid at 45 in 1912), and a feud with the Smithsonian - which insisted its own Langley Aerodrome had been 'capable' of flight first - that sent the original Flyer into exile at London's Science Museum until the Institution recanted. It came home in 1948 and hangs today at the heart of the National Air and Space Museum.[1]
The Flyer's deepest legacy is method: identify the governing problem, instrument your ignorance, test incrementally, trust your own data. The Wrights ran what we would now call a research program - wind tunnel, flight test, iteration - and it beat every better-funded rival on Earth. Aeronautical engineering as a discipline starts with them.[1]
And the twelve seconds keep echoing: a swatch of the Flyer's muslin flew to the Moon in Neil Armstrong's pocket in 1969, and another rode NASA's Ingenuity helicopter for the first powered flight on another planet in 2021, 118 years after Kitty Hawk. Every aircraft in this database is a footnote to that morning.[4]
The original Flyer never flies again and is permanently displayed at the Smithsonian; full-scale flying reproductions occasionally appear at aviation heritage events but are not commonly ADS-B tracked.
| Performance | |
| Max Speed | 26 kn (30 mph / 48 km/h) |
|---|---|
| Cruise SpeedCruise Speed — The economical speed an aircraft sustains for the bulk of a flight - lower than maximum speed, chosen for the best balance of time and fuel burn. Glossary → | N/A - flown at full power for its brief flight duration |
| RangeRange — How far an aircraft can fly without refuelling. Quoted figures vary with payload, speed and reserves - see also ferry range and combat radius. Glossary → | 852 ft - the longest of the four flights made on 17 December 1903, lasting 59 seconds |
| Service CeilingService Ceiling — The highest altitude at which an aircraft can still climb at a useful rate (typically 100 ft/min). Above it, the air is too thin to keep climbing meaningfully. Glossary → | Flown at an altitude of roughly 10 ft above the ground throughout |
| Airframe & Weight | |
| Wingspan | 40 ft 4 in |
| Length | 21 ft 1 in |
| Height | 9 ft 0 in |
| WeightMTOW — Maximum Take-Off Weight - the heaviest an aircraft is certified to be at the start of its take-off run, including fuel, crew, payload and the aircraft itself. Glossary → | empty: 605 lb; loaded: 745 lb |
| Power & Payload | |
| Engines | 1 x Wright-built 4-cylinder inline petrol engine, 12 hp, driving 2 wooden pusher propellers via bicycle-style chains |
| Crew | 1 (pilot, lying prone on the lower wing) |
| CapacityPayload — Everything an aircraft is carrying that isn't the aircraft or its fuel: passengers, cargo, or weapons. Payload and fuel usually trade off against each other. Glossary → | N/A - single-occupant experimental airframe, no cargo or passenger capacity |
| Program & Service | |
| Manufacturer | Wright Cycle Company |
| Origin | United States |
| First Flight | December 17th 1903 |
| Service Entry | December 17th 1903 |
| Retired | December 17th 1903 |
| Number Built | 1 |
| Unit Cost | ~$1,000 in 1903 materials and construction costs (roughly $38,000 in 2026 dollars, adjusted for CPI inflation) - a one-off research aircraft, never sold or produced commercially |
2 notable events involving the Wright Flyer, 1903 to 1908, accounting for 1 deaths. Curated rather than exhaustive.
Shortly after completing its historic first four powered flights at Kill Devil Hills, North Carolina, the unoccupied Wright Flyer was caught by a strong gust of wind that overturned and damaged it badly enough that it never flew again.
During a US Army demonstration flight piloted by Orville Wright, a propeller blade fractured in flight and severed a rudder control wire, sending the aircraft into a nosedive. Passenger Lt. Thomas Selfridge was killed — the first fatality from a powered-airplane crash — and Orville Wright was seriously injured.
| 1903 Flyer | The original machine that made the four Kitty Hawk flights; now preserved and displayed at the Smithsonian National Air and Space Museum. |
| Flyer II (1904) | Improved successor built and flown at Huffman Prairie, Ohio, with a more powerful engine; made the first full-circle flight. |
| Flyer III (1905) | The first truly practical aircraft, capable of remaining aloft for over half an hour and flying figure-eights. |
